I've previously been disparaging about the point of the separate regcea/b control for the XPM RAM components. This was mainly due to the unconditional delays added when the read latency was larger than 2. This seemed to make the regcea/b largely pointless. However when solving an AXI-Streaming problem recently that required a pipelined XPM RAM, a colleague pointed out to me the opportunity presented by the regcea/b input. This seems to me to be a special case that's a great idea as long as the read latency set on the BlockRAM is precisely 2 clock cycles.
I'm going to explore the situation I originally faced to create an 'iterator' that responds appropriately to AXI Streaming signalling, and then factor out the minimal and essential logic for general solutions of this type.
Introduction

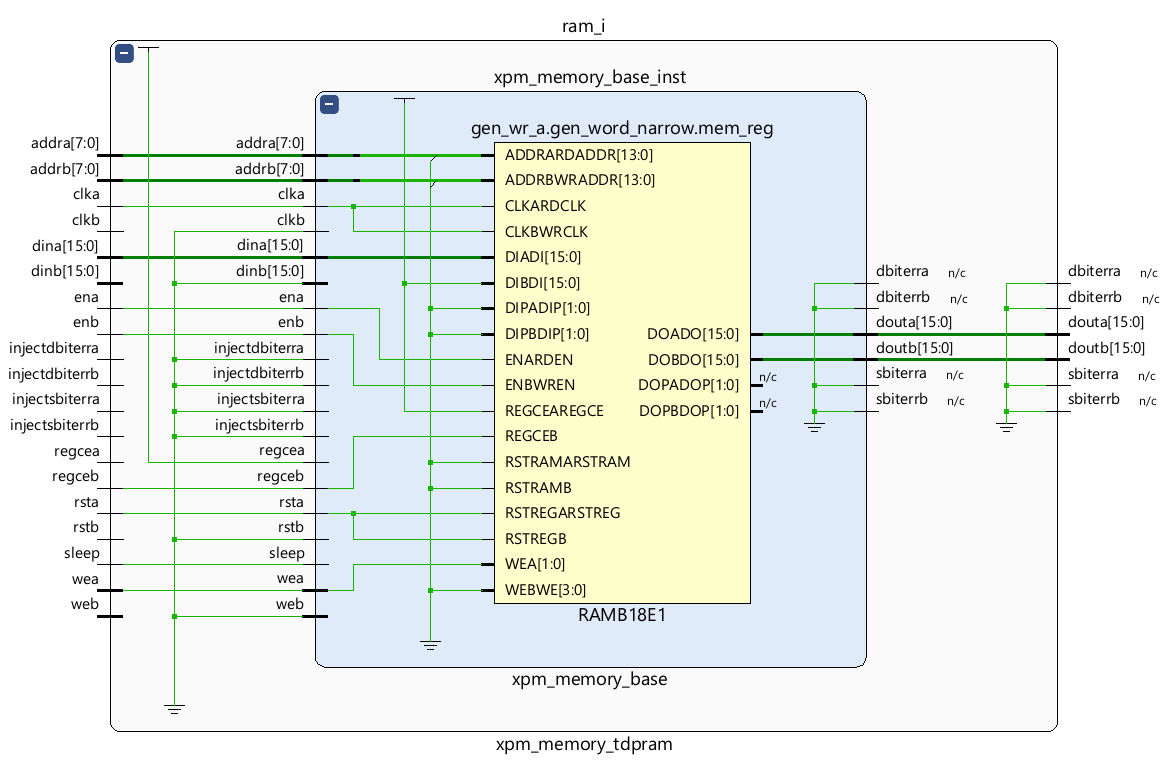

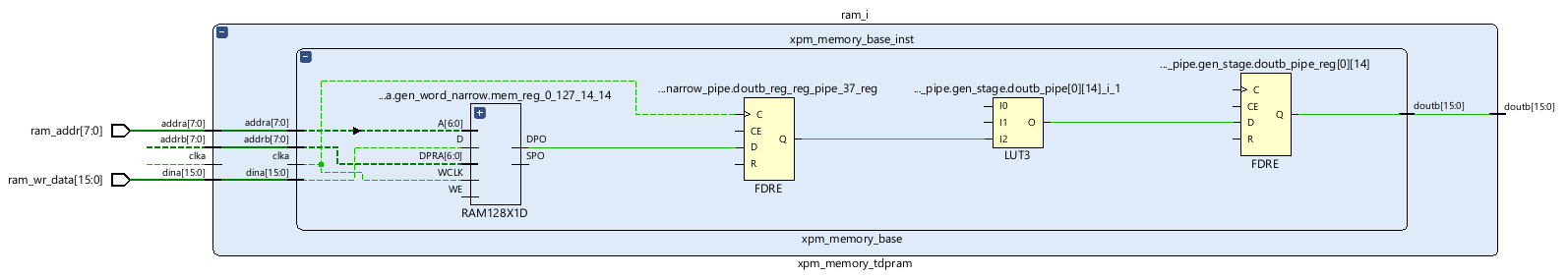

The following two synthesised circuits of the Xilinx XPM module XPM_MEMORY_TDPRAM have the same read latency setting of 2 clock cycles. One is a distributed RAM implementation, the other is BlockRAM. The point of the pictures is that the former explicitly shows two clocked elements in series whilst the latter also has two clocked elements but they are subsumed into one primitive and go unseen. This potentially hides the possibility being demonstrated here.


If you set the read latency to more than 3, then the way in which the additional delays are implemented restrict the pipelining possibility shown here since they are unconditional delays. It is this point which originally threw me off the scent of implementing an AXI-Streaming delay pipeline. In another blog "Exploring Xilinx XPM Memory", I was a little quick to dismiss the point of the regcea/b output enable principally because the preceeding register stages were unconditional delays, hence there seemed little point having a conditional delay as the final stage. However, direct access to the CE pins on the output registers means we can implement the kinds of conditional delays AXI-S requires for a pipeline.

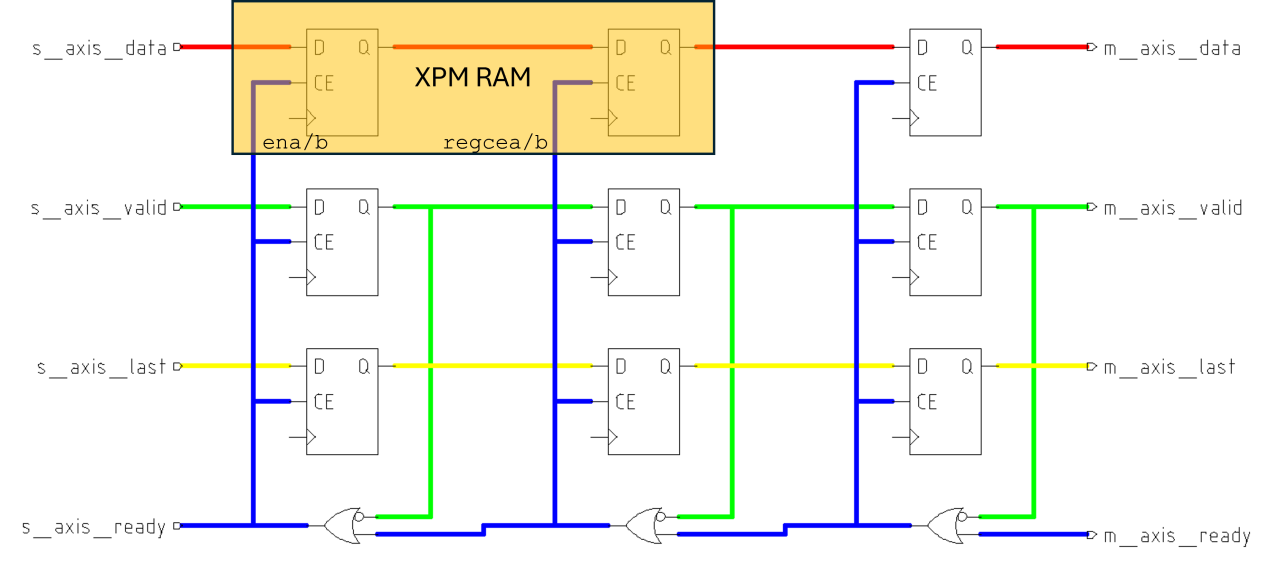

Recall from "Working With AXI Streaming Data" the basic AXI-S pipeline shift register. The aim here is to implement that same shift register when the data is sourced from an XPM RAM. If one sets the regcea/b to '1', or uses a read latency other than 2, then the unconditional delays mean that the reads cannot be pipelined a required for AXI-S.

Iterator

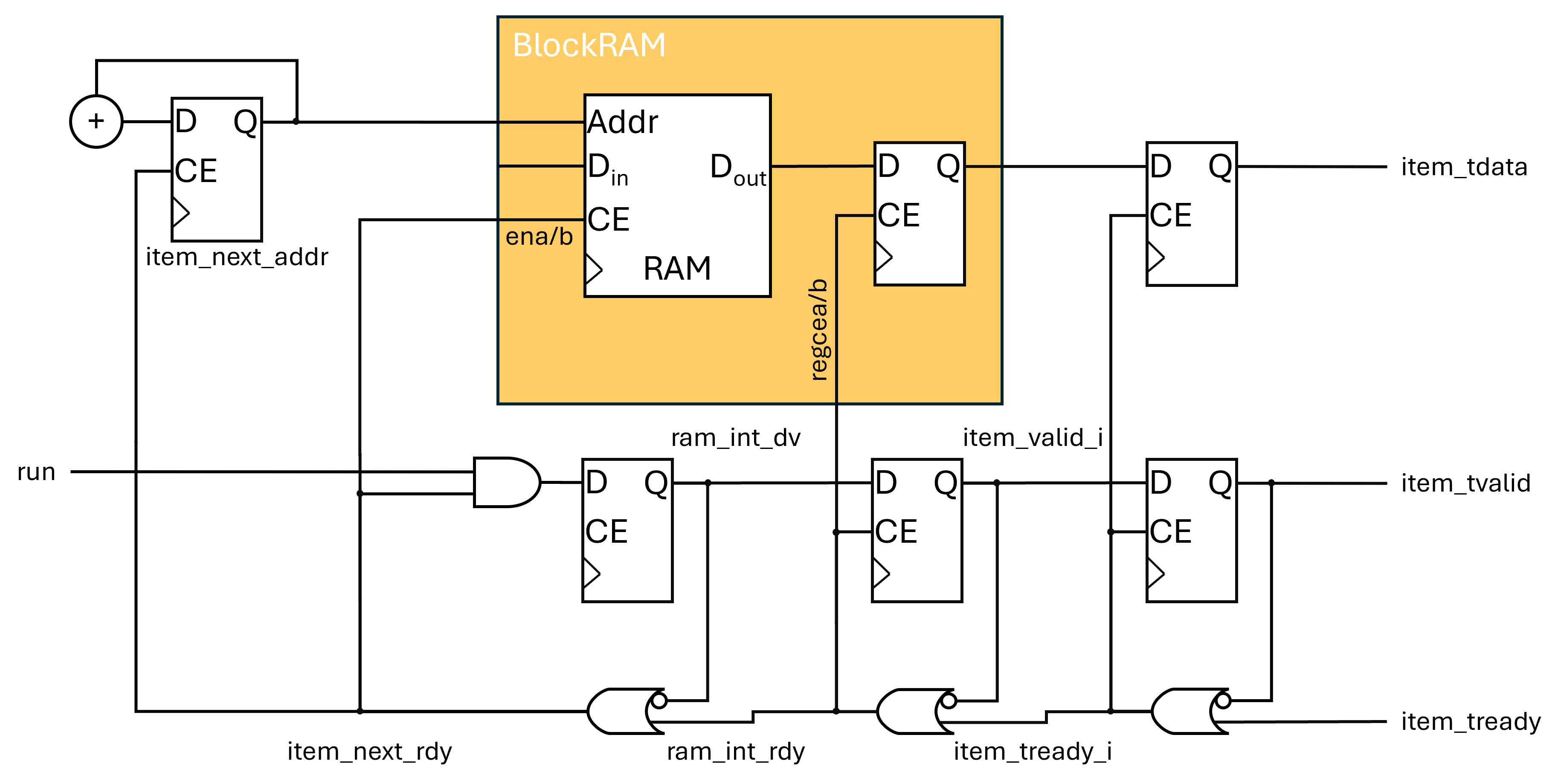

Here, I'm implementing an AXI-Delay pipeline shown above, but replacing the pair of registers show in the yellow highlight with the XPM RAM. To provide some pactical purpose, I'll use the tready line sourced from the right to drive the reading out of the RAM data, and hence increment the address to the RAM ready to read the next value on demand.

The code for this example is given below. The design requires no further explanation that already given in "Working With AXI Streaming Data", so is not repeated here.
library ieee;
use ieee.std_logic_1164.all;
entity axi_delay_iterator is
generic (
ram_addr_width_g : positive := 8;
ram_data_width_g : positive := 16
);
port (
clk : in std_logic;
reset : in std_logic;
-- Port A to load and verify the RAM
ram_addr : in std_logic_vector(ram_addr_width_g-1 downto 0);
ram_wr_data : in std_logic_vector(ram_data_width_g-1 downto 0);
ram_wr_en : in std_logic;
ram_rd_en : in std_logic;
ram_rd_data : out std_logic_vector(ram_data_width_g-1 downto 0) := (others => '0');
ram_rd_valid : out std_logic := '0';
-- Sequentially extracting data from the RAM
run : in std_logic;
item_tdata : out std_logic_vector(ram_data_width_g-1 downto 0) := (others => '0');
item_tvalid : out std_logic := '0';
item_tready : in std_logic -- Might need to reconsider naming convention, this is the external tready
);
end entity;
library ieee;
use ieee.numeric_std_unsigned.all;
library xpm;
use xpm.vcomponents.all;
architecture rtl of axi_delay_iterator is
-- RAM Pipeline
signal item_next_addr : natural range 0 to (2**ram_addr_width_g)-1 := 0;
signal ram_rd_valid_d : std_logic := '0';
signal ram_int_dv : std_logic := '0'; -- RAM internal register stage
signal item_next_rdy : std_logic := '0'; -- RAM internal register stage
signal item_next_data : std_logic_vector(ram_data_width_g-1 downto 0) := (others => '0');
signal item_valid_i : std_logic := '0';
signal ram_int_rdy : std_logic := '0';
signal item_tready_i : std_logic := '0'; -- item_first/last ready
begin
-- Pre-fetch the next item from the RAM.
-- This sets up some pipeline logic that behaves very similar to AXI-Stream
--
process(clk)
begin
if rising_edge(clk) then
-- RAM Port A
ram_rd_valid_d <= ram_rd_en;
ram_rd_valid <= ram_rd_valid_d;
-- RAM Port B
-- First stage: BlockRAM pure delay single cycle lookup
if item_next_rdy = '1' and run = '1' then
ram_int_dv <= '1';
if item_next_addr = (2**ram_addr_width_g)-1 then
item_next_addr <= 0;
else
item_next_addr <= item_next_addr + 1;
end if;
elsif ram_int_rdy = '1' then
ram_int_dv <= '0';
end if;
-- Second stage: BlockRAM registered outputs
if ram_int_rdy = '1' then
item_valid_i <= ram_int_dv;
end if;
-- Third stage: Perhaps perform some data manipulation here before letting go, or remove this stage.
if item_tready_i = '1' then
item_tdata <= item_next_data;
item_tvalid <= item_valid_i;
end if;
if reset = '1' then
ram_rd_valid <= '0';
ram_rd_valid_d <= '0';
item_next_addr <= 0;
ram_int_dv <= '0';
item_valid_i <= '0';
item_tvalid <= '0';
end if;
end if;
end process;
-- First stage: BlockRAM pure delay single cycle lookup
item_next_rdy <= ram_int_rdy or not ram_int_dv;
-- Second stage: BlockRAM registered outputs
ram_int_rdy <= item_tready_i or not item_valid_i;
-- Third stage: first/last in use
item_tready_i <= item_tready or not item_tvalid;
ram_i : XPM_MEMORY_TDPRAM
generic map (
ADDR_WIDTH_A => ram_addr_width_g, -- DECIMAL
ADDR_WIDTH_B => ram_addr_width_g, -- DECIMAL
AUTO_SLEEP_TIME => 0, -- DECIMAL, number of clk[a|b] cycles to auto-sleep
BYTE_WRITE_WIDTH_A => ram_data_width_g, -- DECIMAL, To enable byte-wide writes on port A, specify the byte width
BYTE_WRITE_WIDTH_B => ram_data_width_g, -- DECIMAL, To enable byte-wide writes on port B, specify the byte width
CASCADE_HEIGHT => 0, -- DECIMAL, 0 - No Cascade Height, Allow Vivado Synthesis to choose.
-- 1+ - Vivado Synthesis sets the specified value as Cascade Height.
CLOCKING_MODE => "common_clock", -- String, "common_clock", "independent_clock"
ECC_MODE => "no_ecc", -- String, "no_ecc", "both_encode_and_decode", "decode_only", "encode_only"
MEMORY_INIT_FILE => "none", -- String
MEMORY_INIT_PARAM => "0", -- String
MEMORY_OPTIMIZATION => "true", -- String
MEMORY_PRIMITIVE => "auto", -- String, "auto", "block", "distributed", "ultra"
MEMORY_SIZE => (2**ram_addr_width_g)*ram_data_width_g, -- DECIMAL, specify the total memory array size, in bits.
MESSAGE_CONTROL => 0, -- DECIMAL, Specify 1 to enable the dynamic message reporting such as
-- collision warnings, and 0 to disable the message reporting
READ_DATA_WIDTH_A => ram_data_width_g, -- DECIMAL
READ_DATA_WIDTH_B => ram_data_width_g, -- DECIMAL
READ_LATENCY_A => 2, -- DECIMAL, read data output to port douta takes this number of clka cycles.
-- BlockRAM 1+: 1 causes use of memory latch only;
-- 2 causes use of output register.
-- Distributed memory 0+: 0 uses combinatorial output.
-- 2+ synthesize additional flip-flops that are not retimed into memory primitives.
READ_LATENCY_B => 2, -- DECIMAL, as above on clkb
READ_RESET_VALUE_A => "0", -- String
READ_RESET_VALUE_B => "0", -- String
RST_MODE_A => "SYNC", -- String, "SYNC", "ASYNC"
RST_MODE_B => "SYNC", -- String, "SYNC", "ASYNC"
SIM_ASSERT_CHK => 0, -- DECIMAL; 0=disable simulation messages, 1=enable simulation messages
USE_EMBEDDED_CONSTRAINT => 0, -- DECIMAL, needed for the independent clock distributed RAM based memory
-- if the design takes care of avoiding address collision, see
-- https://docs.amd.com/r/en-US/ug974-vivado-ultrascale-libraries/XPM_MEMORY_SDPRAM
USE_MEM_INIT => 1, -- DECIMAL
USE_MEM_INIT_MMI => 0, -- DECIMAL, Specify 1 to expose this memory information to be written out
-- in the MMI file.
WAKEUP_TIME => "disable_sleep", -- String, "disable_sleep", "use_sleep_pin"
WRITE_DATA_WIDTH_A => ram_data_width_g, -- DECIMAL
WRITE_DATA_WIDTH_B => ram_data_width_g, -- DECIMAL
WRITE_MODE_A => "read_first", -- String, "read_first", "no_change", "write_first"
WRITE_MODE_B => "read_first", -- String, "read_first", "no_change", "write_first"
WRITE_PROTECT => 1 -- DECIMAL, means write is protected through enable and write enable and
-- hence the LUT is placed before the memory. This is the default behaviour
-- to access memory.
)
port map (
clka => clk, -- 1-bit input: Clock signal for port A. Also clocks port B when
-- parameter CLOCKING_MODE is "common_clock".
rsta => reset, -- 1-bit input: Reset signal for the final port A output register
-- stage. Synchronously resets output port douta to the value specified
-- by parameter READ_RESET_VALUE_A.
addra => ram_addr, -- ADDR_WIDTH_A-bit input: Address for port A write operations.
dina => ram_wr_data, -- WRITE_DATA_WIDTH_A-bit input: Data input for port A write operations.
douta => ram_rd_data, -- READ_DATA_WIDTH_B-bit output: Data output for port B read operations.
ena => ram_rd_en or ram_wr_en, -- 1-bit input: Memory enable signal for port A. Must be high on clock
-- cycles when write operations are initiated. Pipelined internally.
wea => (0 => ram_wr_en), -- WRITE_DATA_WIDTH_A/BYTE_WRITE_WIDTH_A-bit input: Write enable vector
-- for port A input data port dina. 1 bit wide when word-wide writes
-- are used. In byte-wide write configurations, each bit controls the
-- writing one byte of dina to address addra. For example, to
-- synchronously write only bits [15-8] of dina when WRITE_DATA_WIDTH_A
-- is 32, wea would be 4'b0010.
regcea => '1', -- 1-bit input: Clock Enable for the last register stage on the output
-- data path.
clkb => clk, -- 1-bit input: Clock signal for port B when parameter CLOCKING_MODE is
-- "independent_clock". Unused when parameter CLOCKING_MODE is
-- "common_clock".
rstb => reset, -- 1-bit input: Reset signal for the final port B output register
-- stage. Synchronously resets output port doutb to the value specified
-- by parameter READ_RESET_VALUE_B.
addrb => to_slv(item_next_addr, ram_addr_width_g), -- ADDR_WIDTH_B-bit input: Address for port B read operations.
dinb => (others => '0'), -- WRITE_DATA_WIDTH_B-bit input: Data input for port B write operations.
doutb => item_next_data, -- READ_DATA_WIDTH_B-bit output: Data output for port B read operations.
enb => item_next_rdy, -- 1-bit input: Memory enable signal for port B. Must be high on clock
-- cycles when read operations are initiated. Pipelined internally.
web => "0", -- WRITE_DATA_WIDTH_B/BYTE_WRITE_WIDTH_B-bit input: Write enable vector
-- for port B input data port dinb. 1 bit wide when word-wide writes
-- are used. In byte-wide write configurations, each bit controls the
-- writing one byte of dinb to address addrb. For example, to
-- synchronously write only bits [15-8] of dinb when WRITE_DATA_WIDTH_B
regceb => ram_int_rdy, -- 1-bit input: Clock Enable for the last register stage on the output
-- data path.
sleep => '0', -- 1-bit input: sleep signal to enable the dynamic power saving feature.
injectdbiterra => '0', -- 1-bit input: Controls double bit error injection on input data when
-- ECC enabled (Error injection capability is not available in
-- "decode_only" mode).
injectsbiterra => '0', -- 1-bit input: Controls single bit error injection on input data when
-- ECC enabled (Error injection capability is not available in
-- "decode_only" mode).
injectdbiterrb => '0', -- 1-bit input: Controls double bit error injection on input data when
-- ECC enabled (Error injection capability is not available in
-- "decode_only" mode).
injectsbiterrb => '0', -- 1-bit input: Controls single bit error injection on input data when
-- ECC enabled (Error injection capability is not available in
-- "decode_only" mode).
sbiterra => open, -- 1-bit output: Status signal to indicate single bit error occurrence
-- on the data output of port A.
dbiterra => open, -- 1-bit output: Status signal to indicate double bit error occurrence
-- on the data output of port A.
sbiterrb => open, -- 1-bit output: Status signal to indicate single bit error occurrence
-- on the data output of port B.
dbiterrb => open -- 1-bit output: Status signal to indicate double bit error occurrence
-- on the data output of port B.
);
end architecture;

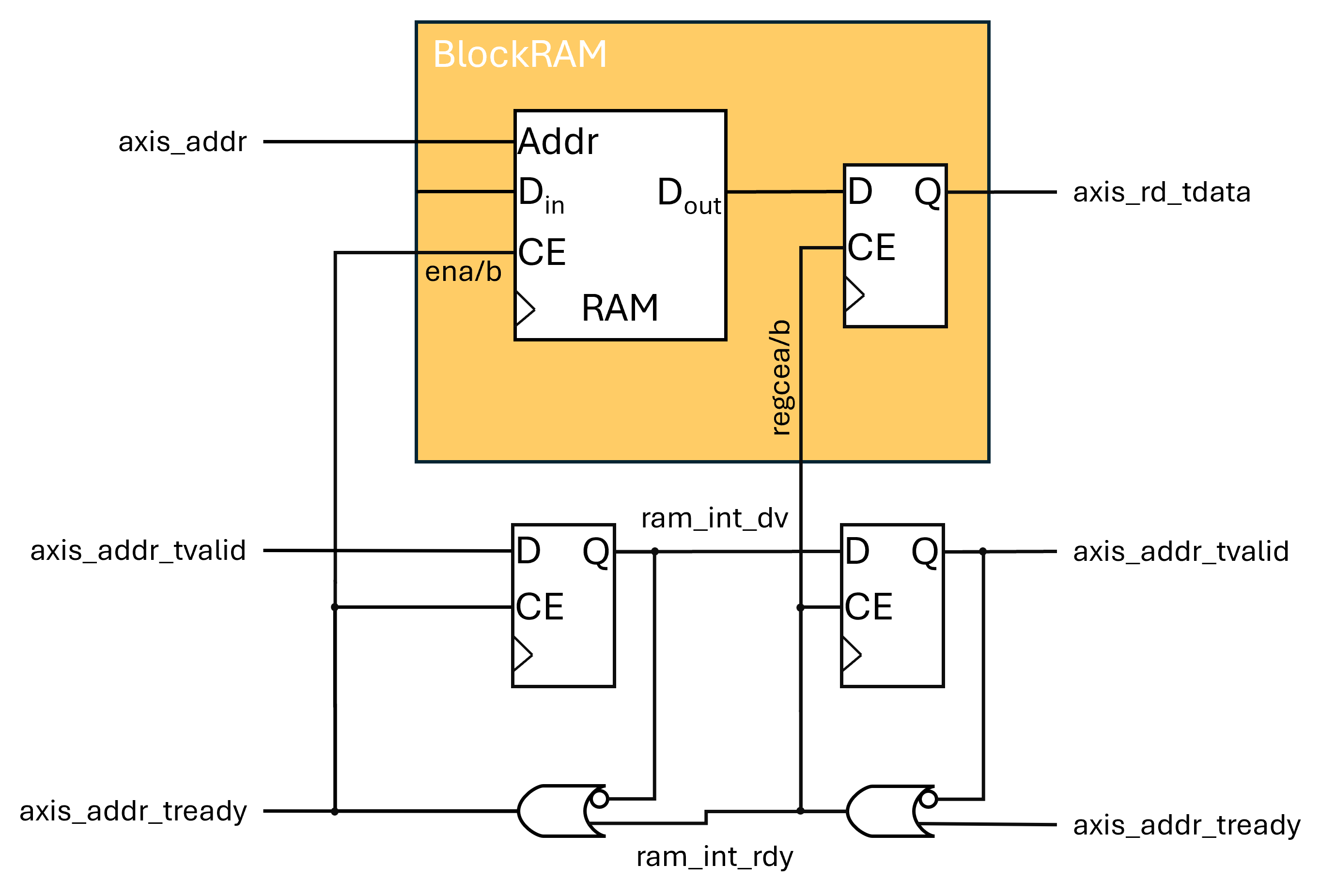

General Solution
My original technical problem occured in a situation rather like the above. The final register stage is intended to allow for additional data manipulation before the data is passed on. Here I've factored out the minimal logic for a general solution. A two stage AXI-S delay such that an address to the RAM is turned into data on the output, and AXI-S shifting is obeyed.

library ieee;
use ieee.std_logic_1164.all;
entity axi_delay_ram is
generic (
ram_addr_width_g : positive := 8;
ram_data_width_g : positive := 16
);
port (
clk : in std_logic;
reset : in std_logic;
-- Port A to load and verify the RAM
ram_addr : in std_logic_vector(ram_addr_width_g-1 downto 0);
ram_wr_data : in std_logic_vector(ram_data_width_g-1 downto 0);
ram_wr_en : in std_logic;
ram_rd_en : in std_logic;
ram_rd_data : out std_logic_vector(ram_data_width_g-1 downto 0) := (others => '0');
ram_rd_valid : out std_logic := '0';
-- Sequentially extracting data from the RAM
axis_addr : in std_logic_vector(ram_addr_width_g-1 downto 0);
axis_addr_tvalid : in std_logic;
axis_addr_tready : out std_logic;
axis_rd_tdata : out std_logic_vector(ram_data_width_g-1 downto 0) := (others => '0');
axis_rd_tvalid : out std_logic := '0';
axis_rd_tready : in std_logic -- Might need to reconsider naming convention, this is the external tready
);
end entity;
library ieee;
use ieee.numeric_std_unsigned.all;
library xpm;
use xpm.vcomponents.all;
architecture rtl of axi_delay_ram is
-- RAM Pipeline
signal ram_rd_valid_d : std_logic := '0';
signal ram_int_dv : std_logic := '0'; -- RAM internal register stage
signal ram_int_rdy : std_logic := '0';
begin
-- Pre-fetch the next item from the RAM.
-- This sets up some pipeline logic that behaves very similar to AXI-Stream
--
process(clk)
begin
if rising_edge(clk) then
-- RAM Port A
ram_rd_valid_d <= ram_rd_en;
ram_rd_valid <= ram_rd_valid_d;
-- RAM Port B
-- First stage: BlockRAM registered lookup
if axis_addr_tready = '1' then
ram_int_dv <= axis_addr_tvalid;
end if;
-- Second stage: BlockRAM registered outputs
if ram_int_rdy = '1' then
axis_rd_tvalid <= ram_int_dv;
end if;
if reset = '1' then
ram_rd_valid <= '0';
ram_rd_valid_d <= '0';
ram_int_dv <= '0';
axis_rd_tvalid <= '0';
end if;
end if;
end process;
-- First stage: BlockRAM pure delay single cycle lookup
axis_addr_tready <= ram_int_rdy or not ram_int_dv;
-- Second stage: BlockRAM registered outputs
ram_int_rdy <= axis_rd_tready or not axis_rd_tvalid;
ram_i : XPM_MEMORY_TDPRAM
generic map (
ADDR_WIDTH_A => ram_addr_width_g, -- DECIMAL
ADDR_WIDTH_B => ram_addr_width_g, -- DECIMAL
AUTO_SLEEP_TIME => 0, -- DECIMAL, number of clk[a|b] cycles to auto-sleep
BYTE_WRITE_WIDTH_A => ram_data_width_g, -- DECIMAL, To enable byte-wide writes on port A, specify the byte width
BYTE_WRITE_WIDTH_B => ram_data_width_g, -- DECIMAL, To enable byte-wide writes on port B, specify the byte width
CASCADE_HEIGHT => 0, -- DECIMAL, 0 - No Cascade Height, Allow Vivado Synthesis to choose.
-- 1+ - Vivado Synthesis sets the specified value as Cascade Height.
CLOCKING_MODE => "common_clock", -- String, "common_clock", "independent_clock"
ECC_MODE => "no_ecc", -- String, "no_ecc", "both_encode_and_decode", "decode_only", "encode_only"
MEMORY_INIT_FILE => "none", -- String
MEMORY_INIT_PARAM => "0", -- String
MEMORY_OPTIMIZATION => "true", -- String
MEMORY_PRIMITIVE => "auto", -- String, "auto", "block", "distributed", "ultra"
MEMORY_SIZE => (2**ram_addr_width_g)*ram_data_width_g, -- DECIMAL, specify the total memory array size, in bits.
MESSAGE_CONTROL => 0, -- DECIMAL, Specify 1 to enable the dynamic message reporting such as
-- collision warnings, and 0 to disable the message reporting
READ_DATA_WIDTH_A => ram_data_width_g, -- DECIMAL
READ_DATA_WIDTH_B => ram_data_width_g, -- DECIMAL
READ_LATENCY_A => 2, -- DECIMAL, read data output to port douta takes this number of clka cycles.
-- BlockRAM 1+: 1 causes use of memory latch only;
-- 2 causes use of output register.
-- Distributed memory 0+: 0 uses combinatorial output.
-- 2+ synthesize additional flip-flops that are not retimed into memory primitives.
READ_LATENCY_B => 2, -- DECIMAL, as above on clkb
READ_RESET_VALUE_A => "0", -- String
READ_RESET_VALUE_B => "0", -- String
RST_MODE_A => "SYNC", -- String, "SYNC", "ASYNC"
RST_MODE_B => "SYNC", -- String, "SYNC", "ASYNC"
SIM_ASSERT_CHK => 0, -- DECIMAL; 0=disable simulation messages, 1=enable simulation messages
USE_EMBEDDED_CONSTRAINT => 0, -- DECIMAL, needed for the independent clock distributed RAM based memory
-- if the design takes care of avoiding address collision, see
-- https://docs.amd.com/r/en-US/ug974-vivado-ultrascale-libraries/XPM_MEMORY_SDPRAM
USE_MEM_INIT => 1, -- DECIMAL
USE_MEM_INIT_MMI => 0, -- DECIMAL, Specify 1 to expose this memory information to be written out
-- in the MMI file.
WAKEUP_TIME => "disable_sleep", -- String, "disable_sleep", "use_sleep_pin"
WRITE_DATA_WIDTH_A => ram_data_width_g, -- DECIMAL
WRITE_DATA_WIDTH_B => ram_data_width_g, -- DECIMAL
WRITE_MODE_A => "read_first", -- String, "read_first", "no_change", "write_first"
WRITE_MODE_B => "read_first", -- String, "read_first", "no_change", "write_first"
WRITE_PROTECT => 1 -- DECIMAL, means write is protected through enable and write enable and
-- hence the LUT is placed before the memory. This is the default behaviour
-- to access memory.
)
port map (
clka => clk, -- 1-bit input: Clock signal for port A. Also clocks port B when
-- parameter CLOCKING_MODE is "common_clock".
rsta => reset, -- 1-bit input: Reset signal for the final port A output register
-- stage. Synchronously resets output port douta to the value specified
-- by parameter READ_RESET_VALUE_A.
addra => ram_addr, -- ADDR_WIDTH_A-bit input: Address for port A write operations.
dina => ram_wr_data, -- WRITE_DATA_WIDTH_A-bit input: Data input for port A write operations.
douta => ram_rd_data, -- READ_DATA_WIDTH_B-bit output: Data output for port B read operations.
ena => ram_rd_en or ram_wr_en, -- 1-bit input: Memory enable signal for port A. Must be high on clock
-- cycles when write operations are initiated. Pipelined internally.
wea => (0 => ram_wr_en), -- WRITE_DATA_WIDTH_A/BYTE_WRITE_WIDTH_A-bit input: Write enable vector
-- for port A input data port dina. 1 bit wide when word-wide writes
-- are used. In byte-wide write configurations, each bit controls the
-- writing one byte of dina to address addra. For example, to
-- synchronously write only bits [15-8] of dina when WRITE_DATA_WIDTH_A
-- is 32, wea would be 4'b0010.
regcea => '1', -- 1-bit input: Clock Enable for the last register stage on the output
-- data path.
clkb => clk, -- 1-bit input: Clock signal for port B when parameter CLOCKING_MODE is
-- "independent_clock". Unused when parameter CLOCKING_MODE is
-- "common_clock".
rstb => reset, -- 1-bit input: Reset signal for the final port B output register
-- stage. Synchronously resets output port doutb to the value specified
-- by parameter READ_RESET_VALUE_B.
addrb => axis_addr, -- ADDR_WIDTH_B-bit input: Address for port B read operations.
dinb => (others => '0'), -- WRITE_DATA_WIDTH_B-bit input: Data input for port B write operations.
doutb => axis_rd_tdata, -- READ_DATA_WIDTH_B-bit output: Data output for port B read operations.
enb => axis_addr_tready, -- 1-bit input: Memory enable signal for port B. Must be high on clock
-- cycles when read operations are initiated. Pipelined internally.
web => "0", -- WRITE_DATA_WIDTH_B/BYTE_WRITE_WIDTH_B-bit input: Write enable vector
-- for port B input data port dinb. 1 bit wide when word-wide writes
-- are used. In byte-wide write configurations, each bit controls the
-- writing one byte of dinb to address addrb. For example, to
-- synchronously write only bits [15-8] of dinb when WRITE_DATA_WIDTH_B
regceb => ram_int_rdy, -- 1-bit input: Clock Enable for the last register stage on the output
-- data path.
sleep => '0', -- 1-bit input: sleep signal to enable the dynamic power saving feature.
injectdbiterra => '0', -- 1-bit input: Controls double bit error injection on input data when
-- ECC enabled (Error injection capability is not available in
-- "decode_only" mode).
injectsbiterra => '0', -- 1-bit input: Controls single bit error injection on input data when
-- ECC enabled (Error injection capability is not available in
-- "decode_only" mode).
injectdbiterrb => '0', -- 1-bit input: Controls double bit error injection on input data when
-- ECC enabled (Error injection capability is not available in
-- "decode_only" mode).
injectsbiterrb => '0', -- 1-bit input: Controls single bit error injection on input data when
-- ECC enabled (Error injection capability is not available in
-- "decode_only" mode).
sbiterra => open, -- 1-bit output: Status signal to indicate single bit error occurrence
-- on the data output of port A.
dbiterra => open, -- 1-bit output: Status signal to indicate double bit error occurrence
-- on the data output of port A.
sbiterrb => open, -- 1-bit output: Status signal to indicate single bit error occurrence
-- on the data output of port B.
dbiterrb => open -- 1-bit output: Status signal to indicate double bit error occurrence
-- on the data output of port B.
);
end architecture;
Conclusions
When I was more naive with AXI, I recall using a BlockRAM and feeding data read into an FIFO that was set to be full a few locations ahead of when it actually was. This would provide a over-run buffer for the data from RAM which reacted too slowly for AXI signaling due to the constant and unconditional 2 cycle lookup delay. The FIFO would then soak up the data to prevent it being lost, and allow a simple interface to an AXI data stream. This is way a more elegant and efficient solution to interface an XPM RAM as a source of data feeding an AXI Stream.
